GeForce RTX 2080 VENTUS 8G V2 - Thermal Pad Diagram

[leeming.reec15c702ef]

Hello all,

I can seem to find the correct thermal pad dimensions and placement for my graphics card: GeForce RTX 2080 VENTUS 8G V2

Could anyone link me to the correct diagram please?

I would normally just measure the existing pads but this card has had its pads replaced incorrectly by its previous owner.



[Svet]

What is the S/N of the GPU? You can skip the last 3 digits when posting.



[leeming.reec15c702ef]

602-V372-127SB1903000***



[Svet]

Oki, will try to get it and will update you when I have it.



[Svet]

Update:

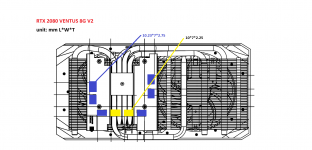

Here it is.
