MSI Crosshair 15 (B12U) Latest driver updates.

[Deleted member 976596]

NVIDIA App (beta) - 10.0.0.505
Realtek Audio - 6.0.9648.1



[erpman15ac02e2]

I get the same results on LatencyMon regardless of the change. And to be totally honest, the speakers on this model are pretty poor in quality anyway. Even compared to the old MSI GP62-6QF Leopard PRO that i had just refurbished. I tried Mass Effect LE on both systems and the sound quality is night and day. Consequently all i do is connect to a smart tv and play it from there.
View attachment 184825View attachment 184826
Sometimes the latency is fine other times its terrible. Its really situational.

maybe it's better to not update your Realtek audio driver beyond 6.0.9597.1 if you continue to experience such latency problems in versions 6.0.9601.1 & greater. might be best to stick with an older driver version that doesn't have such latency problems.

but major kudos to MichelN86 for making the Realtek audio delay latency reg fix. Gigabyte MB users are getting plagued by sound latency problems with Realtek driver versions from 6.0.9601.1 & newer (like with 6.0.9608.1 from this forum thread) and such problems did not occur with versions 6.0.9599.1 & older.



[Deleted member 976596]

and such problems did not occur with versions 6.0.9599.1 & older.

It always did on my MSI machine since i bought it. Tried the stock drivers from msi up to the latest ones from now, same issue till the fix is applied. It has to do with power savings that can only be changed using regedit. Every time a audio driver gets updated you have to redo this.



[msimann]

Realtek audio delay fix.

You can fix this by using the regedit function and search for "ConservationIdleTime" or "PerformanceIdleTime" or "IdlePowerState". Check the left tab if it says realtek.

You will see this:
View attachment 184822

* My realtek is located under 0001, it is possible yours is stored under 0002, 0003 or another number.
2. Click on PowerSettings and change the values (old to fixed ones)

Old value:
View attachment 184824
Fixed audio:
View attachment 184823

3. Reboot!

** If you want to use a .reg file, just save it. don't forget to change the values to your own.

Backup:

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Control\Class\{4d36e96c-e325-11ce-bfc1-08002be10318}\0001\PowerSettings]
"ConservationIdleTime"=hex:05,00,00,00
"PerformanceIdleTime"=hex:05,00,00,00
"IdlePowerState"=hex:03,00,00,00

Fixed audio:

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Control\Class\{4d36e96c-e325-11ce-bfc1-08002be10318}\0001\PowerSettings]
"ConservationIdleTime"=hex:ff,ff,ff,ff
"PerformanceIdleTime"=hex:ff,ff,ff,ff
"IdlePowerState"=hex:00,00,00,00

Last thing, after every audio update you have to redo the steps posted above. If you update realtek, intel smartsound technology or the nahimic drivers you have to redo it.

Thank you. But why do we need this? How do I know if I have latency?



[Deleted member 976596]

Thank you. But why do we need this? How do I know if I have latency?

You already notice it when your windows 11 is booting. The sound melody is not fully playing. You also notice it when your getting a error message or increase the volume and you don’t hear the sounds fully.



[Grieverokami]

maybe it's better to not update your Realtek audio driver beyond 6.0.9597.1 if you continue to experience such latency problems in versions 6.0.9601.1 & greater. might be best to stick with an older driver version that doesn't have such latency problems.

but major kudos to MichelN86 for making the Realtek audio delay latency reg fix. Gigabyte MB users are getting plagued by sound latency problems with Realtek driver versions from 6.0.9601.1 & newer (like with 6.0.9608.1 from this forum thread) and such problems did not occur with versions 6.0.9599.1 & older.

That's good to know. Thanks for the tip. To be honest, its been a while since i logged in so im out of the loop. I've decided to leave it as is for now. But after the latest updates and patches, it seams it makes no difference. @MichelN86's registry fix does go some way into reducing the latencey but. as of now, i use an external display for most things gaming related so its not a huge deal.



[Deleted member 976596]

That's good to know. Thanks for the tip. To be honest, its been a while since i logged in so im out of the loop. I've decided to leave it as is for now. But after the latest updates and patches, it seams it makes no difference. @MichelN86's registry fix does go some way into reducing the latencey but. as of now, i use an external display for most things gaming related so its not a huge deal.

Well your machine is 99% identical to mine and i don’t have those latencey issues at all. Prehaps a program (antivirus or something) is causing it.



[Grieverokami]

Well your machine is 99% identical to mine and i don’t have those latencey issues at all. Prehaps a program (antivirus or something) is causing it.

Definitely the case. But for the record, first thing i did was remove the pre-installed Norton Antivirus so that's not it. I use Windows defender. If anyone thinks that's either a good Idea or bad idea, please let me know. Problem is, the delayed sound cues are really noticeable when dialogue boxes are prompted. Perhaps I can run another Latencymon test when i have time and see what comes up. Simply put the time it takes between a dialogue box to pop up and sound cue for said dialogue box is almost a second delay. Again, it doesn't bug me so much but it is jarring and definitely problematic if you are working with audio programs. For the price you pay, that's not cool to say the least.



[Deleted member 976596]

Realtek Audio Effects Component - 13.309.1165.249



[Pesedm]

GeForce Game Ready Driver - 551.86



[Deleted member 976596]

	Intel® Bluetooth	23.30.0
	Intel® Management Engine (WMI Provider) Intel® Management Engine (Interface #1) Intel® Dynamic Application Loader Host Interface	2338.5.1.0 2345.5.3.0 1.44.2023.710
	Intel® Serial IO	30.100.2328.32
	Intel® Wireless LAN	23.30.0
	Realtek LAN	1124.016 , 1125.016 , 1126.016, 1166.016 , 1168.016 (2024/03/01)
	Intel® Rapid Storage Technology Driver Intel® Rapid Storage Technology F6 How to load IRST driver or other third party driver during the Windows installation?	19.5.7.1058 19.5.7.1058
	Intel® MVA Intel® Smart Sound Technology Nahimic Realtek Audio Realtek Audio Effects Component	1.0.3218.0 10.29.0.10040 4.10.4.0 (EXTv1.5.38.0) 6.0.9648.1 13.309.1165.249
	NVIDIA GeForce Game Ready NVIDIA App (beta) Intel® Graphics	551.86 10.0.0.535 31.0.101.5379
	Intel® HID Event Filter Intel® GNA Scoring Accelerator module Intel® Chipset INF Utility	2.2.2.6 3.5.0.1574 10.1.19627.8423
	Intel® Dynamic Tuning Intel® IPF Intel® IPF Extensible Framework	9.0.11404.39881 1.0.11404.41023 2.1.10103.24

* Realtek audio delay fix
* Block Windows 11 driver updates



[Deleted member 976596]

Intel® Management Engine (WMI Provider) - 2353.5.2.0
Intel® Management Engine (Interface #1) - 2406.5.5.0
Realtek Audio Effects Component - 13.321.1171.254



[marwanihaithem0151102d6]

Hello [B]MichelN86[/B] , i got a problem with my laptop msi katana 17 i7 12th and rtx 4060 , it crashes on every game i play , i tried a lot of things (update graphics dirver , clean uninstall graphics driver , install visual c++ redist , directx , change registers , installing windows ..) in the event viewer i got this error:

"La description de l’ID d’événement 0 dans la source nvlddmkm est introuvable. Le composant qui a déclenché cet événement n’est pas installé sur l’ordinateur local ou l’installation est endommagée. Vous pouvez installer ou réparer le composant sur l’ordinateur local.
Si l’événement provient d’un autre ordinateur, les informations d’affichage doivent être enregistrées avec l’événement.
Les informations suivantes étaient incluses avec l’événement :
\Device\Video8
Error occurred on GPUID: 100
La ressource de message est présente, mais le message est introuvable dans la table des messages"

and this "Le pilote d’affichage nvlddmkm ne répondait plus. "

i dont know what to do i tried nvidia graphic driver version 551.23 and nothing changed

i tested the graphic card with "Unigine superposition Benchmark" and no crashes



[Deleted member 976596]

Hello [B]MichelN86[/B] , i got a problem with my laptop msi katana 17 i7 12th and rtx 4060 , it crashes on every game i play , i tried a lot of things (update graphics dirver , clean uninstall graphics driver , install visual c++ redist , directx , change registers , installing windows ..) in the event viewer i got this error:

"La description de l’ID d’événement 0 dans la source nvlddmkm est introuvable. Le composant qui a déclenché cet événement n’est pas installé sur l’ordinateur local ou l’installation est endommagée. Vous pouvez installer ou réparer le composant sur l’ordinateur local.
Si l’événement provient d’un autre ordinateur, les informations d’affichage doivent être enregistrées avec l’événement.
Les informations suivantes étaient incluses avec l’événement :
\Device\Video8
Error occurred on GPUID: 100
La ressource de message est présente, mais le message est introuvable dans la table des messages"

and this "Le pilote d’affichage nvlddmkm ne répondait plus. "

i dont know what to do i tried nvidia graphic driver version 551.23 and nothing changed

i tested the graphic card with "Unigine superposition Benchmark" and no crashes

Turn off hags (Hardware-accelerated GPU scheduling) and change TDR timeout delay in registery. Since i have changed those 2 options i had zero bluescreen issues or nvlddmkm errors.



[Pesedm]

Intel® Graphics - 31.0.101.5382



[colinohare155402de]

I can't get the CAB files to install the drivers, I am extracting them but I am getting the following error (for example, with Intel® Management Engine (WMI Provider)):
"MEWMIProv.inf: Failed to add driver to the system. Error 0x00000002: The system cannot find the file specified."

This error repeats for each folder I select that's been extracted from CAB file



[marwanihaithem0151102d6]

Turn off hags (Hardware-accelerated GPU scheduling) and change TDR timeout delay in registery. Since i have changed those 2 options i had zero bluescreen issues or nvlddmkm errors.

Hey bro it doesnt work , i also updated Intel® Graphics - 31.0.101.5382



[jimmygie5154402de]

View attachment 182522

	Intel® Bluetooth	23.10.0
	Intel® Management Engine (WMI Provider) Intel® Management Engine (Interface #1) Intel® Dynamic Application Loader Host Interface	2338.5.1.0 2336.5.2.0 1.44.2023.710
	Intel® Serial IO	30.100.2237.26
	Intel® Wireless LAN	23.10.0
	Realtek LAN	1124.015 , 1125.015 , 1126.015, 1166.015 , 1168.015 (2023/12/25)
	Intel® MVA Intel® Smart Sound Technology A-Volute AudioProcessingObject + A-Volute Extension Realtek Audio	1.0.3178.0 10.29.0.9947 4.10.4.0 + 1.5.33.0 6.0.9618.1
	GeForce Game Ready Driver Intel® Graphics	546.33 (Last stable one is 537.58) 31.0.101.5084/31.0.101.5122
	Intel® HID Event Filter Intel® GNA Scoring Accelerator module Intel® Chipset INF Utility	2.2.2.5 3.5.0.1574 10.1.19600.8418
	Intel® Dynamic Tuning Intel® Innovation Platform Framework Processor Participant Intel® Innovation Platform Framework Extensible Framework	9.0.11401.39039 1.0.11401.39039 2.1.10102.8

I would also recommend the program wushowhide to disable auto update on the intel graphics. This because if you use intel auto updater (or intel website) to update the Intel ARC driver windows update always kicks in and downgrades the driver to a much older one. Which in many cases you have to do multiple reboots unnecessary.

Hello, sorry to be disturbed but I have a problem with my msi Vector GP78HX 13VG laptop. When I'm in a game it crashes often with this error in the Event Viewer: ESIF(1.0.11100.29710) TYPE: ERROR MODULE: IPF TIME 37675 ms

[<IPFSRV>AuthMgr_EsifPrimitive@ipfsrv_authmgr.c#1532]<37675 ms>:
Unauthorized EsifPrimitive: NA (941), or ESIF(1.0.11100.29710) TYPE: ERROR MODULE: IPF TIME 37374 ms

[<IPFSRV>AuthMgr_EsifPrimitive@ipfsrv_authmgr.c#1532]<37374 ms>:

I'd like to know if you have a solution and if you have a link to download the latest driver updates for my PC model, ,because I don't know if the drivers you shared are compatible with my pc.

Thank you in advance for your help



[Deleted member 976596]

Hello, sorry to be disturbed but I have a problem with my msi Vector GP78HX 13VG laptop. When I'm in a game it crashes often with this error in the Event Viewer: ESIF(1.0.11100.29710) TYPE: ERROR MODULE: IPF TIME 37675 ms

[<IPFSRV>AuthMgr_EsifPrimitive@ipfsrv_authmgr.c#1532]<37675 ms>:
Unauthorized EsifPrimitive: NA (941), or ESIF(1.0.11100.29710) TYPE: ERROR MODULE: IPF TIME 37374 ms

[<IPFSRV>AuthMgr_EsifPrimitive@ipfsrv_authmgr.c#1532]<37374 ms>:

I'd like to know if you have a solution and if you have a link to download the latest driver updates for my PC model, ,because I don't know if the drivers you shared are compatible with my pc.

Thank you in advance for your help

Did you try the latest download links posted here ? Post 1 is outdated by now. This is a error created by the Intel Innovation Platform Framework, dont forget to install the Extensible Framework too.

Hey bro it doesnt work , i also updated Intel® Graphics - 31.0.101.5382

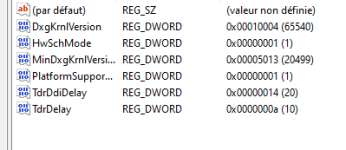

64 bit requires 64 bit value.

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\GraphicsDrivers]
"TdrDelay"=hex(b):10,00,00,00,00,00,00,00

I can't get the CAB files to install the drivers, I am extracting them but I am getting the following error (for example, with Intel® Management Engine (WMI Provider)):
"MEWMIProv.inf: Failed to add driver to the system. Error 0x00000002: The system cannot find the file specified."

This error repeats for each folder I select that's been extracted from CAB file

Does your system have the WMI Provider driver listed in device manager ? Maybe you should start first with wat model you have ?



[jimmygie5154402de]

Did you try the latest download links posted here ? Post 1 is outdated by now. This is a error created by the Intel Innovation Platform Framework, dont forget to install the Extensible Framework too.


64 bit requires 64 bit value.

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\GraphicsDrivers]
"TdrDelay"=hex(b):10,00,00,00,00,00,00,00

Does your system have the WMI Provider driver listed in device manager ? Maybe you should start first with wat model you have ?

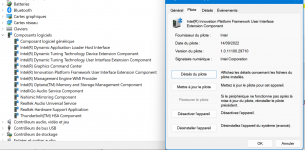

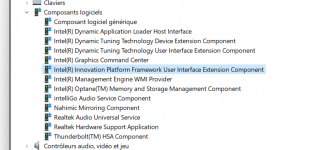

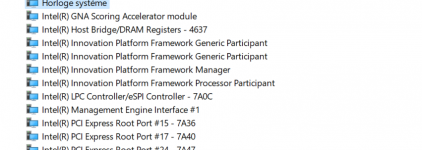

I can't find the associated device extensible framework, I just updated IPF but I still have the same problem, except that I no longer have an error in the event viewer. I installed the IPF drivers by going to each of the 4 drivers and selecting the unzip file, because the Dism command doesn't work even with a RestoreHeath. I'm on windows 11.
