Realtek USB Audio Driver (UAD) Update Version
- Thread starter Lord44
- Start date
erpman15ac02e2
Active member
- Joined
- Aug 26, 2021
- Messages
- 214
it does not always work out that way. it's Realtek that you have to take the issue up to, and not just with MSI.
sometimes Realtek makes specific drivers and will have different usb driver versions that will sometimes not support all manufacturers. plus Realtek does not do usb audio drivers that much as they get few updates than standard hd audio drivers. MSI has to specficially ask Realtek for new versions but so far they have not.
now this guy in another thread does updates the RIGHT & proper way (with actual download links to the updates), while you do it the WRONG & confusing way.
oh btw, this realtek usb audio 6.3.9600.2368 driver from station drivers recently came out but it's for AMD systems only, not for Intel based MSI boards like yours. although you can't update to that driver version (because the necessary INF file is missing for MSI systems and only available for AMD systems), you could update some of the included components like RealtekHSA to 11.0.6000.304 and RealtekUSBAPO to v12.0.6000.1097 on Win10 & v13.0.6000.1097 on Win11 (the RealtekUSBAPO drivers are now "split" into two different versions; one specific for Win10 and the other specific for Win11).
Last edited:
- Joined
- Jun 1, 2012
- Messages
- 68
Update form ASUS
[DRIVERS] Realtek USB Audio (AMD 5xx/6xx/TRX40 & Intel 5xx/6xx/7xx)
Realtek USB Audio Drivers (UAD - ASUS ROG SS3-DTS) :
Drivers : 6.3.9600.2368 WHQL [21/08/2023]
SS3-SSVM Extension Driver : 1.3.18.0 WHQL [13/07/2022]
SS3-SSVM VAD Media Driver : 1.0.3.0 WHQL [07/06/2022]
SS3 APO SoftwareComponent Driver : 3.5.6.0 WHQL [21/11/2022]
DTS APO4x Extension Driver : 1.11.25.0 WHQL [10/04/2023]
Question how to modify/transform RtDUsbAD_asus.inf in RtDUsbAD_msi.inf to working on mainboard MSI ???
RealtekASIO_10
RealtekHSA_305
RealtekService_636
RealtekUSBAPO_12_1097
RealtekUSBAPO_13_1097
These versions fit in the old driver 6.3.9600.2353 from MSI , delete the rest and work from the device manager or directly from the install, the rest do not
For information, since this latest release Realtek has split the Realtek USB APO Driver into 2 versions depending on your operating system :
USB Audio
Version: 6.3.9600.2368
Date: 21 August 2023
INF file: rtdusbad_msi.inf
Size: 2.6 MB
For which mainboard was the driver made and how can it be downloaded from there ? does the driver exist on ftp from MSI??
[DRIVERS] Realtek USB Audio (AMD 5xx/6xx/TRX40 & Intel 5xx/6xx/7xx)
Realtek USB Audio Drivers (UAD - ASUS ROG SS3-DTS) :
Drivers : 6.3.9600.2368 WHQL [21/08/2023]
SS3-SSVM Extension Driver : 1.3.18.0 WHQL [13/07/2022]
SS3-SSVM VAD Media Driver : 1.0.3.0 WHQL [07/06/2022]
SS3 APO SoftwareComponent Driver : 3.5.6.0 WHQL [21/11/2022]
DTS APO4x Extension Driver : 1.11.25.0 WHQL [10/04/2023]
Question how to modify/transform RtDUsbAD_asus.inf in RtDUsbAD_msi.inf to working on mainboard MSI ???
RealtekASIO_10
RealtekHSA_305
RealtekService_636
RealtekUSBAPO_12_1097
RealtekUSBAPO_13_1097
These versions fit in the old driver 6.3.9600.2353 from MSI , delete the rest and work from the device manager or directly from the install, the rest do not
For information, since this latest release Realtek has split the Realtek USB APO Driver into 2 versions depending on your operating system :
- Windows 11 : 13.0.6000.1097 (Realtek Audio Effects Component device visible now in the new Audio processing objects (APO) category in your Device Manager (as well as in Driver Store Explorer).
- Windows 10 : 12.0.6000.1097 (Realtek Audio Effects Component device visible as usual in the Software components category in your Device Manager (as well as in Driver Store Explorer).
USB Audio
Version: 6.3.9600.2368
Date: 21 August 2023
INF file: rtdusbad_msi.inf
Size: 2.6 MB
For which mainboard was the driver made and how can it be downloaded from there ? does the driver exist on ftp from MSI??
Last edited:
- Joined
- Jun 1, 2012
- Messages
- 68
Realtek USB Audio v6.3.9600.2368 [MSI] (unofficial)
unofficial Realtek USB Audio 6.3.9600.2368 MSI driver (posted 9/25/2023) - {download here}
-for certain MSI MAG/MEG/MPG gaming boards with TRX40, WRX80, B650, X670, Z590, Z690 & Z790 chipsets that contain Realtek ALC4080/ALC4082
-changes for unofficial 6.3.9600.2368 MSI driver mentioned in Spoiler below:
-added new HWID "USB\VID_0DB0&PID_027C&MI_00" to 2368 RtDUsbAD_msi.inf & ExtRtXUsb_Msi_RTK.inf files
-added "PnpLockDown=1" entry below "DriverVer" section and changed "DeviceExtensions.NTamd64" section
to "DeviceExtensions.NTamd64.10.0...16299" all 2368 Realtek USB audio device extension INF files
-RealtekHSA component updated from 299 to 304
-Realtek Universal Service {RealtekService} Component updated from 626 to 636
-Reaktek USBAPO {AudioProcessingObject} Audio Effect Component drivers have been split into
two versions > v12.0.6000.1097 for Win10 and v13.0.6000.1097 for Win11
unofficial Realtek USB Audio 6.3.9600.2368 MSI driver (posted 9/25/2023) - {download here}
-for certain MSI MAG/MEG/MPG gaming boards with TRX40, WRX80, B650, X670, Z590, Z690 & Z790 chipsets that contain Realtek ALC4080/ALC4082
-changes for unofficial 6.3.9600.2368 MSI driver mentioned in Spoiler below:
-added new HWID "USB\VID_0DB0&PID_027C&MI_00" to 2368 RtDUsbAD_msi.inf & ExtRtXUsb_Msi_RTK.inf files
-added "PnpLockDown=1" entry below "DriverVer" section and changed "DeviceExtensions.NTamd64" section
to "DeviceExtensions.NTamd64.10.0...16299" all 2368 Realtek USB audio device extension INF files
-RealtekHSA component updated from 299 to 304
-Realtek Universal Service {RealtekService} Component updated from 626 to 636
-Reaktek USBAPO {AudioProcessingObject} Audio Effect Component drivers have been split into
two versions > v12.0.6000.1097 for Win10 and v13.0.6000.1097 for Win11
- Joined
- Jun 1, 2012
- Messages
- 68
Realtek Audio Universal Service "SoftwareComponent" 1.0.652.0 driver from MS Update
{ HTTP link from MS - use only in old versions of certain web browsers} { HTTPS link from MS - use this one for modern Chrome/Edge/Firefox browsers}
{ HTTP link from MS - use only in old versions of certain web browsers} { HTTPS link from MS - use this one for modern Chrome/Edge/Firefox browsers}
erpman15ac02e2
Active member
- Joined
- Aug 26, 2021
- Messages
- 214
Microsoft has recently posted a Realtek USB Audio 6.3.9600.2369 codec driver on the MS Update Catalog site late Sunday night Nov. 26, 2023 (mainly coz Realtek sent it to Microsoft to host on the ms catalog site and thru windows update).
this driver is an "All OEM" version that includes the necessary RtDUsbAD_msi.inf file that can install on certain MSI motherboards with Realtek ALC4080 or ALC4082 usb audio hardware.
it's too bad Microstar International [MSI] did not ask Realtek yet for new realtek usb audio drivers since the 6.3.9600.2353 version produced back in late February 2023 & released to MSI around March 2023 (well Realtek USB audio devices are less common than standard Realtek HD audio devices and therefore usb audio drivers get LESS updates). Asus & Supermicro already have v6.3.9600.2368 of the realtek usb audio drivers for their respective systems in Q4 2023 and MSI already now has an outdated version.
this driver is an "All OEM" version that includes the necessary RtDUsbAD_msi.inf file that can install on certain MSI motherboards with Realtek ALC4080 or ALC4082 usb audio hardware.
it's too bad Microstar International [MSI] did not ask Realtek yet for new realtek usb audio drivers since the 6.3.9600.2353 version produced back in late February 2023 & released to MSI around March 2023 (well Realtek USB audio devices are less common than standard Realtek HD audio devices and therefore usb audio drivers get LESS updates). Asus & Supermicro already have v6.3.9600.2368 of the realtek usb audio drivers for their respective systems in Q4 2023 and MSI already now has an outdated version.
Last edited:
erpman15ac02e2
Active member
- Joined
- Aug 26, 2021
- Messages
- 214
finally after about 9 months since the March 2023 release, MSI updated their Realtek USB Audio MSI driver package (realtek_audio_USB_R) to version 6.3.9600.2369 on Xmas day Dec. 25
-Realtek usb audio device extension INF files updated from CodecExtOem_RTK_71 to CodecExtOem_RTK_73 in this 2369 release
also released is the standard Realtek HD audio UAD MSI driver version 6.0.9618.1, which has the following updated components:
- Realtek Universal Service {RealtekService} Component updated 681
- RealtekHSA component updated 315
Merry XMAS!
-Realtek usb audio device extension INF files updated from CodecExtOem_RTK_71 to CodecExtOem_RTK_73 in this 2369 release
also released is the standard Realtek HD audio UAD MSI driver version 6.0.9618.1, which has the following updated components:
- Realtek Universal Service {RealtekService} Component updated 681
- RealtekHSA component updated 315
Merry XMAS!
erpman15ac02e2
Active member
- Joined
- Aug 26, 2021
- Messages
- 214
this new Realtek USB Audio MSI driver was recently released in late March 2024 only thru MSI LiveUpdate for some recent MSI motherboards with Realtek ALC4080/4082 usb audio hardware: version 6.3.9600.2379 {oh lucky MSI board users who use the MSI LiveUpdate app might get this new version offered - currently an "exclusive" release}

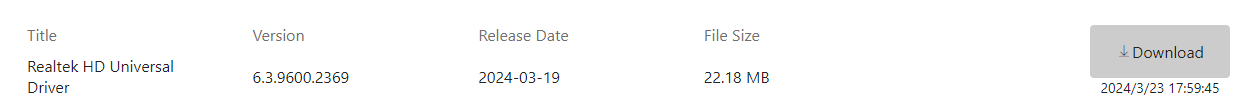

the main MSI web site still has the older 6.3.9600.2369 version but was re-released March 19, 2024 to include the missing RealtekUSBAPO_13_1097 driver package for win11 (the original 2369 driver package released back on 12/25/2023 had only RealtekUSBAPO_12_1097 for win10, but now the revised package has both RealtekUSBAPO_12_1097 & RealtekUSBAPO_13_1097 drivers included)
the main MSI web site still has the older 6.3.9600.2369 version but was re-released March 19, 2024 to include the missing RealtekUSBAPO_13_1097 driver package for win11 (the original 2369 driver package released back on 12/25/2023 had only RealtekUSBAPO_12_1097 for win10, but now the revised package has both RealtekUSBAPO_12_1097 & RealtekUSBAPO_13_1097 drivers included)
Last edited:
erpman15ac02e2
Active member
- Joined
- Aug 26, 2021
- Messages
- 214
yea MSI did finally post the 2379 driver version on the main MSI web site near end of March 2024, several days after the 2379 usb audio driver was released on the MSI LiveUpdate site
- Joined
- Jun 1, 2012
- Messages
- 68
Hello ASUS release the Realtek USB Audio 6.3.9600.2382 the MSI not ?
CodecExtOem_RTK_77 update
--------------------------------------------------------
RealtekASIO_12 update from Realtek 6.0.9686.1
RealtekHSA_330 update from Realtek 6.0.9686.1
RealtekService_761 update from Realtek 6.0.9686.1
CodecExtOem_RTK_77 update
--------------------------------------------------------
RealtekASIO_12 update from Realtek 6.0.9686.1
RealtekHSA_330 update from Realtek 6.0.9686.1
RealtekService_761 update from Realtek 6.0.9686.1
Last edited:
- Joined
- Jun 1, 2012
- Messages
- 68
unofficial Realtek USB Audio DCH 6.3.9600.2382 MSI drivers (all posted 6/10/2024)
{download 6.3.9600.2382 MSI version here}
-for certain MSI desktop boards with Realtek ALC4050H/ALC4080/ALC4082 USB audio hardware
changes for 6.3.9600.2382 MSI version {from 2378 to 2382}
-added "PnpLockDown=1" entry to 2382 RtDUsbAD_msi.inf file
-RealtekHSA component updated from 323 to 325
-Realtek Universal Service {RealtekService} Component updated from 722 to 743
-Realtek USB audio device extension INF files updated from v1.0.0.76 to v1.0.0.77 (CodecExtOem_RTK_76 > CodecExtOem_RTK_77)
{download 6.3.9600.2382 MSI version here}
-for certain MSI desktop boards with Realtek ALC4050H/ALC4080/ALC4082 USB audio hardware
changes for 6.3.9600.2382 MSI version {from 2378 to 2382}
-added "PnpLockDown=1" entry to 2382 RtDUsbAD_msi.inf file
-RealtekHSA component updated from 323 to 325
-Realtek Universal Service {RealtekService} Component updated from 722 to 743
-Realtek USB audio device extension INF files updated from v1.0.0.76 to v1.0.0.77 (CodecExtOem_RTK_76 > CodecExtOem_RTK_77)
mh.shuvro0157b02e6
New member
- Joined
- Jun 12, 2024
- Messages
- 3
Hi, I recently built my PC using an MSI Z790 Gaming Plus WiFi motherboard. I've installed the Realtek audio driver from the motherboard's website, but the sound is very low even at 100% volume. This issue was present even before I installed the driver. At 100% volume, it sounds like it's at 50%, and at 50%, it sounds like 20%. I initially thought this was due to Windows 11, but the Microsoft support team checked everything remotely and said the issue must be with the motherboard's audio driver. Could you please help me with this?
- Joined
- Jun 1, 2012
- Messages
- 68
unofficial Realtek USB Audio 6.3.9600.2391 MSI driver [final] (posted 7/15/2024) - {download here from MEGA}
-for certain MSI motherboards with Realtek USB Audio ALC4080/ALC4082 instead of standard Realtek HD Audio chipsets like ALC1220/ALC897/ALC887 etc.
and as an added bonus:
unofficial Realtek USB Audio 6.3.9600.2391 MSI + Nahimic APO4 driver (also posted 7/15/2024) - {download here from MEGA}
-this one for certain MSI boards {ex. MEG Z590 Godlike & MEG Z590 UNIFY} with Realtek ALC4080/ALC4082 and use Nahimic Audio Enhancer
-contains A-Volute Nahimic APO4 v4.11.4.0 driver + A-volute MSI Extension 1.5.45.0 driver
-changes for the unofficial 6.3.9600.2391 MSI driver editions listed in Spoiler below:
-added the following new HWIDs to 6.3.9600.2391 RtDUsbAD_msi.inf & & 1.0.0.82 ExtRtXUsb_Msi_RTK.inf files {man, they're a lot}
USB\VID_0DB0&PID_DA75&MI_00
USB\VID_0DB0&PID_3A12&MI_00
USB\VID_0DB0&PID_0B58&MI_00
USB\VID_0DB0&PID_E5C3&MI_00
USB\VID_0DB0&PID_19A2&MI_00
USB\VID_0DB0&PID_EB98&MI_00
USB\VID_0DB0&PID_CD0E&MI_00
USB\VID_0DB0&PID_C536&MI_00
USB\VID_0DB0&PID_9E6D&MI_00 *
note > HWID "USB\VID_0DB0&PID_9E6D&MI_00" was added and "sandwiched" in between existing IDs
"USB\VID_0DB0&PID_422D&MI_00" & "USB\VID_0DB0&PID_7696&MI_00" - another big reason why I took so
long in making valid 2391 RtDUsbAD_msi.inf & 1.0.0.82 ExtRtXUsb_Msi_RTK.inf files that would pass
WHQL validation and would finally be accepted by DriverStoreExplorer [RAPR] without error, thus
delaying / postponing the release for many days until it's ready {it's better to get it right
but take a lot of time rather than to get it done quickly and get it wrong several times;
"slow and steady" rather than "haste makes waste"}
-Realtek ASIO component updated from 1.0.11.2 to 1.0.12.1
-RealtekHSA component updated from 325 to 334
-Realtek Universal Service {RealtekService} Component updated from 743 to 768.8
-Realtek USB audio device extension INF files {ExtRtXUsb_Msi_AVO_RTK.inf, ExtRtXUsb_Msi_AVO_V4_RTK.inf
and ExtRtXUsb_Msi_RTK.inf} finally updated from v1.0.0.77 to v1.0.0.82 (CodecExtOem_RTK_77 > CodecExtOem_RTK_82)
-also added another 6.3.9600.2391 MSI driver release with Nahimic APO4 4.11.4.0, Nahimic Easy Surround device {NahimicBTLink} 2.0.4.0,
Nahimic Mirroring Component Device 2.0.5.0 & A-volute MSI Extension 1.5.45.0 drivers included
working update from 6.0.9702.1 ASUS
- RealtekService_772
RealtekAudioControl_1.51.337-offline Update
2024-07-12
https://www.mediafire.com/file/kiy1ugjlwmy7j0s/RealtekAudioControl_1.51.337-offline.zip/file
-for certain MSI motherboards with Realtek USB Audio ALC4080/ALC4082 instead of standard Realtek HD Audio chipsets like ALC1220/ALC897/ALC887 etc.
and as an added bonus:
unofficial Realtek USB Audio 6.3.9600.2391 MSI + Nahimic APO4 driver (also posted 7/15/2024) - {download here from MEGA}
-this one for certain MSI boards {ex. MEG Z590 Godlike & MEG Z590 UNIFY} with Realtek ALC4080/ALC4082 and use Nahimic Audio Enhancer
-contains A-Volute Nahimic APO4 v4.11.4.0 driver + A-volute MSI Extension 1.5.45.0 driver
-changes for the unofficial 6.3.9600.2391 MSI driver editions listed in Spoiler below:
-added the following new HWIDs to 6.3.9600.2391 RtDUsbAD_msi.inf & & 1.0.0.82 ExtRtXUsb_Msi_RTK.inf files {man, they're a lot}
USB\VID_0DB0&PID_DA75&MI_00
USB\VID_0DB0&PID_3A12&MI_00
USB\VID_0DB0&PID_0B58&MI_00
USB\VID_0DB0&PID_E5C3&MI_00
USB\VID_0DB0&PID_19A2&MI_00
USB\VID_0DB0&PID_EB98&MI_00
USB\VID_0DB0&PID_CD0E&MI_00
USB\VID_0DB0&PID_C536&MI_00
USB\VID_0DB0&PID_9E6D&MI_00 *
note > HWID "USB\VID_0DB0&PID_9E6D&MI_00" was added and "sandwiched" in between existing IDs
"USB\VID_0DB0&PID_422D&MI_00" & "USB\VID_0DB0&PID_7696&MI_00" - another big reason why I took so
long in making valid 2391 RtDUsbAD_msi.inf & 1.0.0.82 ExtRtXUsb_Msi_RTK.inf files that would pass
WHQL validation and would finally be accepted by DriverStoreExplorer [RAPR] without error, thus
delaying / postponing the release for many days until it's ready {it's better to get it right
but take a lot of time rather than to get it done quickly and get it wrong several times;
"slow and steady" rather than "haste makes waste"}
-Realtek ASIO component updated from 1.0.11.2 to 1.0.12.1
-RealtekHSA component updated from 325 to 334
-Realtek Universal Service {RealtekService} Component updated from 743 to 768.8
-Realtek USB audio device extension INF files {ExtRtXUsb_Msi_AVO_RTK.inf, ExtRtXUsb_Msi_AVO_V4_RTK.inf
and ExtRtXUsb_Msi_RTK.inf} finally updated from v1.0.0.77 to v1.0.0.82 (CodecExtOem_RTK_77 > CodecExtOem_RTK_82)
-also added another 6.3.9600.2391 MSI driver release with Nahimic APO4 4.11.4.0, Nahimic Easy Surround device {NahimicBTLink} 2.0.4.0,
Nahimic Mirroring Component Device 2.0.5.0 & A-volute MSI Extension 1.5.45.0 drivers included
working update from 6.0.9702.1 ASUS
- RealtekService_772
RealtekAudioControl_1.51.337-offline Update
2024-07-12
https://www.mediafire.com/file/kiy1ugjlwmy7j0s/RealtekAudioControl_1.51.337-offline.zip/file
Last edited:
- Joined
- Jun 1, 2012
- Messages
- 68
Realtek USB Audio DCH 6.3.9600.2388 codec driver from MS Update (posted 7/21/2024; cab download size 770Kb)
catalog.s.download.windowsupdate.com/d/m...5853f0fabaa2f100.cab
also
unofficial Realtek USB Audio UAD/DCH 6.3.9600.2388 MSI driver packages (posted 7/22/2024)
{6.3.9600.2388 MSI download}
-slightly older version than the 6.3.9600.2391 driver releases
-changes for the unofficial 6.3.9600.2388 drivers listed in Spoiler below:
changes for 6.3.9600.2388 MSI version {from 2382 to 2388}
-added the following new HWIDs to 6.3.9600.2388 RtDUsbAD_msi.inf file {yes, they're several of them}
USB\VID_0DB0&PID_DA75&MI_00
USB\VID_0DB0&PID_3A12&MI_00
USB\VID_0DB0&PID_0B58&MI_00
USB\VID_0DB0&PID_E5C3&MI_00
USB\VID_0DB0&PID_19A2&MI_00
USB\VID_0DB0&PID_EB98&MI_00
-Realtek ASIO component updated from 1.0.11.2 to 1.0.12.1
-RealtekHSA component updated from 325 to 330
-Realtek Universal Service {RealtekService} Component updated from 743 to 762
-Realtek USB APO drivers updated from 12.0.6000.1167/13.0.6000.1167 to 12.0.6000.1168/13.0.6000.1168
catalog.s.download.windowsupdate.com/d/m...5853f0fabaa2f100.cab
also
unofficial Realtek USB Audio UAD/DCH 6.3.9600.2388 MSI driver packages (posted 7/22/2024)
{6.3.9600.2388 MSI download}
-slightly older version than the 6.3.9600.2391 driver releases
-changes for the unofficial 6.3.9600.2388 drivers listed in Spoiler below:
changes for 6.3.9600.2388 MSI version {from 2382 to 2388}
-added the following new HWIDs to 6.3.9600.2388 RtDUsbAD_msi.inf file {yes, they're several of them}
USB\VID_0DB0&PID_DA75&MI_00
USB\VID_0DB0&PID_3A12&MI_00
USB\VID_0DB0&PID_0B58&MI_00
USB\VID_0DB0&PID_E5C3&MI_00
USB\VID_0DB0&PID_19A2&MI_00
USB\VID_0DB0&PID_EB98&MI_00
-Realtek ASIO component updated from 1.0.11.2 to 1.0.12.1
-RealtekHSA component updated from 325 to 330
-Realtek Universal Service {RealtekService} Component updated from 743 to 762
-Realtek USB APO drivers updated from 12.0.6000.1167/13.0.6000.1167 to 12.0.6000.1168/13.0.6000.1168
Last edited:
erpman15ac02e2
Active member
- Joined
- Aug 26, 2021
- Messages
- 214
the link to this "unofficial Realtek USB Audio 6.3.9600.2391 MSI driver" package is no longer working (it has been recently removed from MEGA)
however, an "official" Realtek USB Audio MSI version 6.3.9600.2391 driver package is available thru MSI LiveUpdate, so use the one from the MSI LiveUpdate site instead.
