Author Topic: MSI R7870 Twin Frozr 2GD5/OC. Serious Gaming Starts Here :)  (Read 5960 times)

0 Members and 1 Guest are viewing this topic.

gzhilTopic starter

  • Hardware Reviewer
  • SECOND LIEUTENANT
  • **
  • Offline Offline
  • Posts: 127

If the 7970 is too much for you. Well the MSI R7870 Twin Frozr 2GD5 might just be right for you. Codename "Pitcairn" and also using the new 28nm process technology. Same PCI-E Gen3, power management, AMD PowerTune and ZeroCore Technology features like its stronger brother "Tahiti".

I won't be specific on the things what the AMD Radeon HD 7000 Series Graphic Product Line has to offer anymore and I have discussed this with  my previous 7970 post already. Let us just move on right away with the MSI's custom version of R7870. Serious Gaming Starts Here :)

Here are the actual box shots of the said card.


Well nothing new here :) some basic information on what kind of components MSI used with the card. MSI Afterburner is the software used for overclocking the video card and lastly the Twin Frozr's Cooling performance is also stated here.

MSI  R7870 Twin Frozr/OC Specifications:
•1280 Stream Processors
•1050 MHz Core Clock
•2 GB GDDR5
•1200 MHz (4800 MHz actual)
•256 bit Memory Interface
•PCI Express 16x 3.0
•One DVI output
•One HDMI output
•Two mini DisplayPort outputs

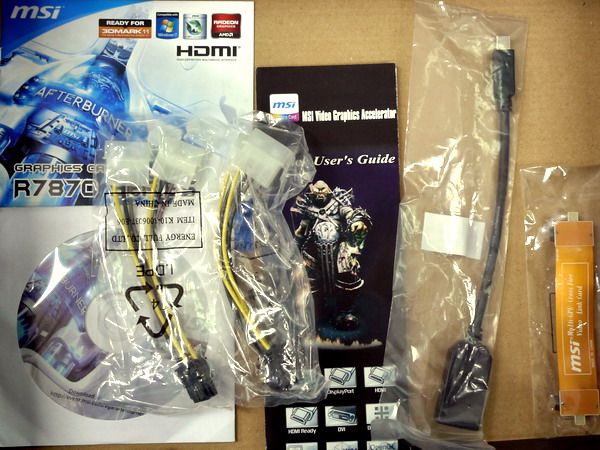

Bundled Accessories you have:
•Manuals and Utility Software Disc
•2x 6Pin to 4Pin Molex
•Mini DisplayPort Adapter to DisplayPort
•Crossfire Bridge

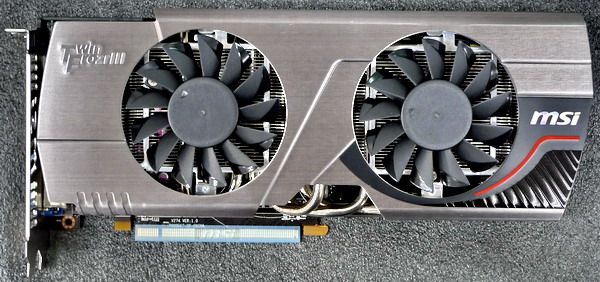

Here is the card :) Aluminum brushed top finish. Two 80mm Propeller blade fans which provides 20% more airflow. Nickel Copper Plated Base

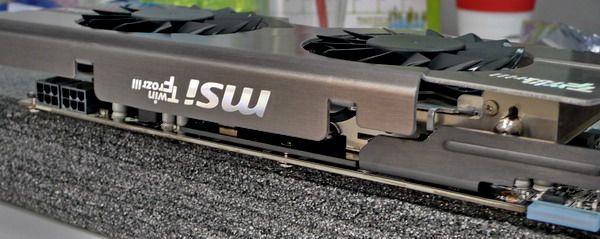

Powered up by two 6Pins. MSI Twin Frozr Emboss Steel finish.

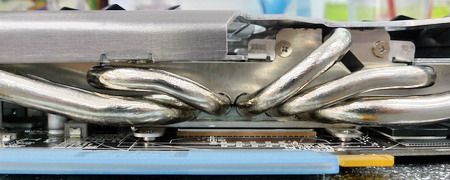

Five thick heatpipes that help dissipate the heat away from the GPU core.


Well the backplate eats up two PCI Slots.It also serves as a vent for exhaust to have a good airflow inside the case.

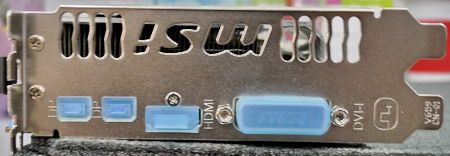

Video Output Functions:
•Dual-link DVI x 1
•Mini DisplayPort x 2
•HDMI x 1

Test system configuration below:
•Processor: Intel Core i7 3960x
•Cooler: Thermaltake Frio Advance
•Memory: Kingston Hyper X Genesis 2x2GB DDR3 2133MHz
•Motherboard: X79A-GD65 8D
•HDD: OCZ Technology Agility 3 120GB
•PSU: Antec TPQ 1200Q
•Softwares: Windows 7 Ultimate 64Bit, Futuremark Benchmark Softwares, Heaven DX11, GPU-Z, CPU-Z, Afterburner 2.2.0, AMD ATI Catalyst 12.3

The following were the results of my benchies. First set are all @ stock speed

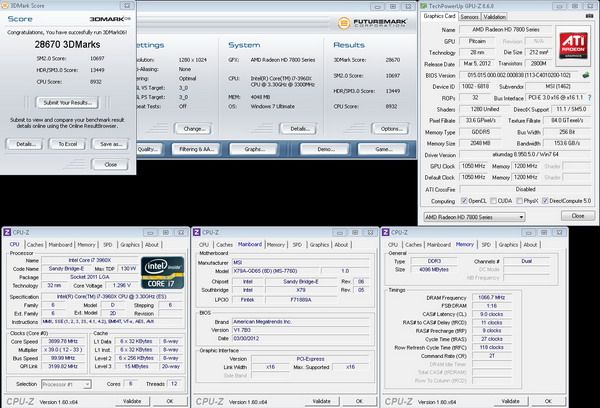

3dMark06 - 28670

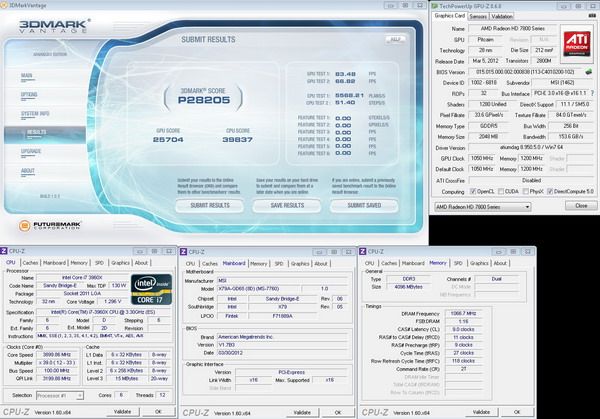

Vantage - P28205

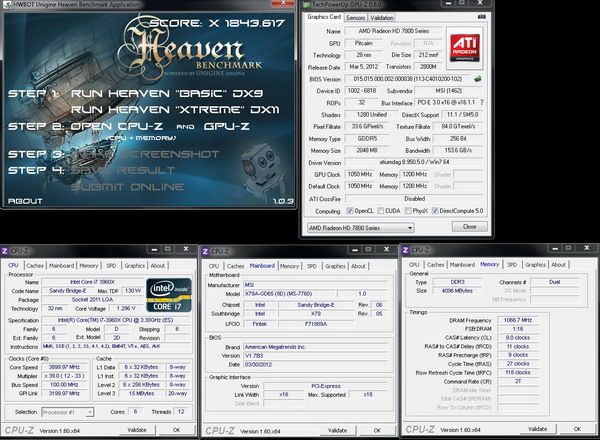

Heaven DX11 - X 1843.617

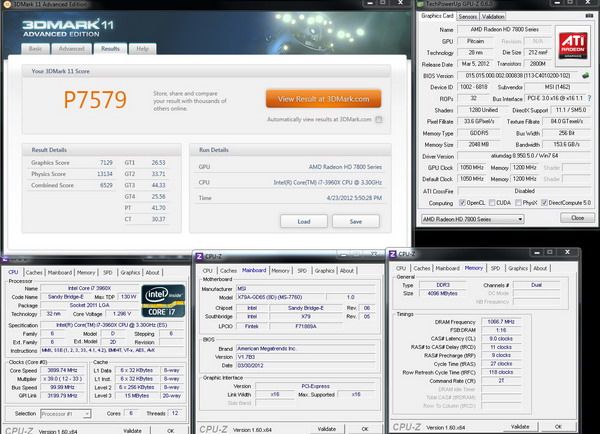

3dMark11 Performance - P7579

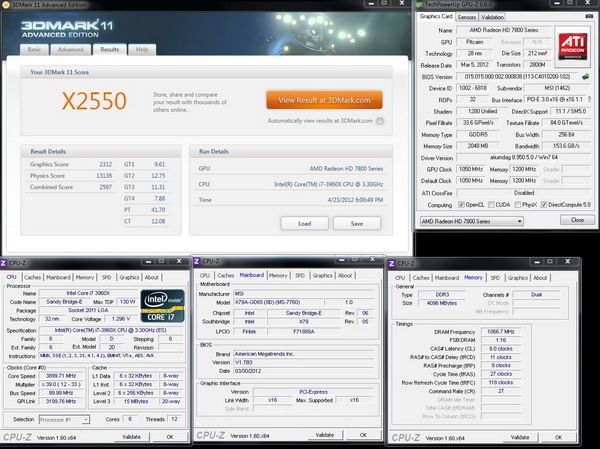

3dMark11 Extreme - X2550


Last set is an overclocked system:)
3dMark06 - 35402

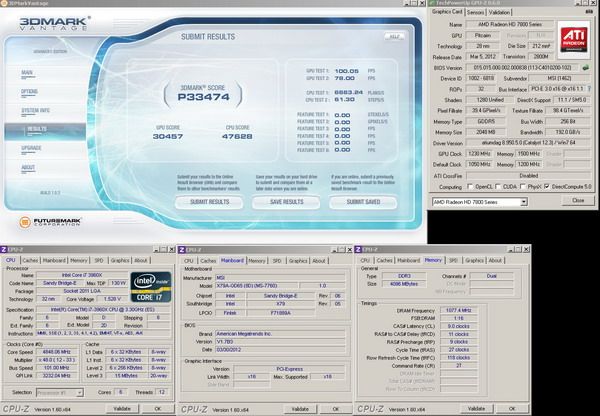

Vantage - P33474

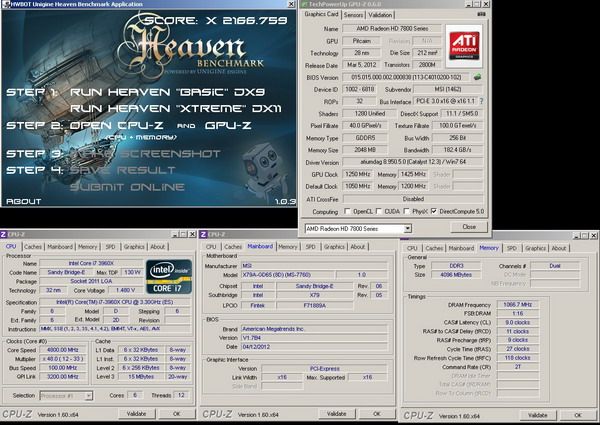

Heaven DX11 - 2166.759

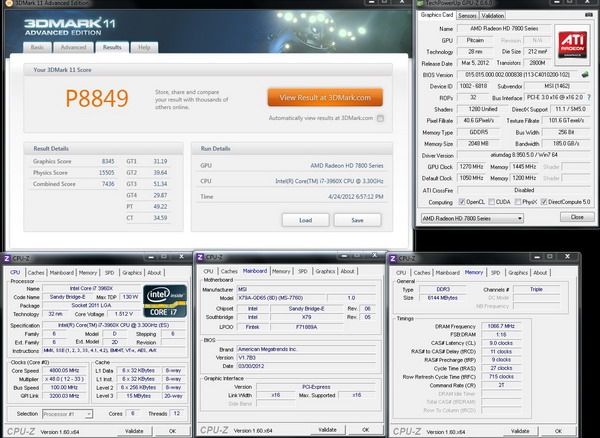

3dMark11 Performance - P8849

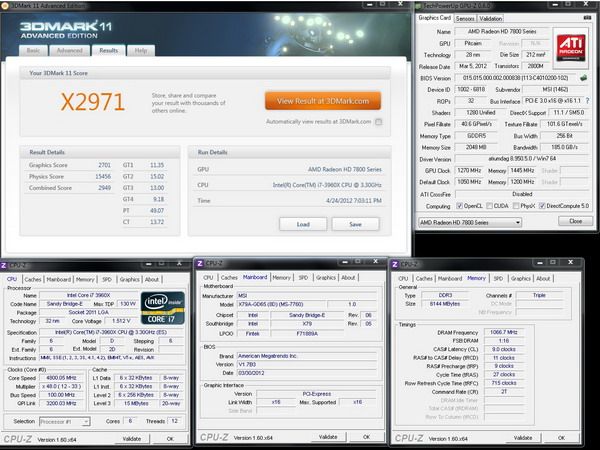

3dMark11 Extreme - X2971


So far the highest GPU core I can get with the videocard was 1270MHz. Not bad from a stock speed of 1050Mhz. That's it
Logged
Enermax Revolution 1050W watts PSU
MSI XPower
Intel Xeon
G Skill Perfect Storm 3x2GB DDR3 2133MHz
MSI N580GTX Lightning
OCZ Solid 3 60GB SSD 6GB/s
Seagate 500GB 3GB/s
Coolermaster CM 690 II Advance
A4Tech X7 G700 Keyboard
A4Tech X5-70MD
Creative 5.1 Speakers
Hanns-G HG281 28" LCD Monitor

neoroy

  • FIRST LIEUTENANT
  • ***
  • Offline Offline
  • Posts: 360

Hello again Gzhill :) nice review.
I used to have this card too, and could do 1300/1450 1.30volt just for Vantage and 2011 benchmark like this :




Too bad I only use max 4.4GHz with 2500K because at that time I dont have HSF for my procie ^_^ so it was Intel stock cooling all around.
Daily I used 1250/1450 1.30 Volt or 1275/1300 1.30 Volt. Btw your Graphic score in 3DMark 2011 is so high, is it because of i7 SB-E?? If I use i7 2600K can I achieve that score??
Thx.

Logged
Intel Xeon E5-2623 V3 @3.3GHz
MSI X99A SLI Krait Edition
GALAX GTX980Ti GOC LN2 @1500MHz stock volt
Gskill Ripjaws V 4x4G 2400MHz DDR4
Pioneer SSD APS-SL3N 240GB
Seagate HDD 1TB 7200rpm SATA3
Seagate HDD 500GB 7200rpm SATA3
DELL U2713HMT
CoolerMaster SilentPro M2 1000W Silver
Cooler Master Hyper 212X Turbo
Razer Mamba TE Chroma
Razer Goliathus Extended
SAMSUNG Bluray Combo SH-B123L
Windows 10 Pro 64bit

gzhilTopic starter

  • Hardware Reviewer
  • SECOND LIEUTENANT
  • **
  • Offline Offline
  • Posts: 127
Re: MSI R7870 Twin Frozr 2GD5/OC. Serious Gaming Starts Here :)
« Reply #2 on: 18-September-12, 02:14:53 »

@neoroy

Your right because of the Sandybridge-E. It pulls out the performance out of the card. The multi-core helps a lot for the 3dmark11 and as well for Vantage.
Logged
Enermax Revolution 1050W watts PSU
MSI XPower
Intel Xeon
G Skill Perfect Storm 3x2GB DDR3 2133MHz
MSI N580GTX Lightning
OCZ Solid 3 60GB SSD 6GB/s
Seagate 500GB 3GB/s
Coolermaster CM 690 II Advance
A4Tech X7 G700 Keyboard
A4Tech X5-70MD
Creative 5.1 Speakers
Hanns-G HG281 28" LCD Monitor

neoroy

  • FIRST LIEUTENANT
  • ***
  • Offline Offline
  • Posts: 360
Re: MSI R7870 Twin Frozr 2GD5/OC. Serious Gaming Starts Here :)
« Reply #3 on: 10-October-12, 11:55:48 »

@neoroy

Your right because of the Sandybridge-E. It pulls out the performance out of the card. The multi-core helps a lot for the 3dmark11 and as well for Vantage.
I see ... thanks for the tips, gzhil  :hat tip:
Do you think this card abit or at least same in terms of performance with GTX580? I like this card  :-))
Logged
Intel Xeon E5-2623 V3 @3.3GHz
MSI X99A SLI Krait Edition
GALAX GTX980Ti GOC LN2 @1500MHz stock volt
Gskill Ripjaws V 4x4G 2400MHz DDR4
Pioneer SSD APS-SL3N 240GB
Seagate HDD 1TB 7200rpm SATA3
Seagate HDD 500GB 7200rpm SATA3
DELL U2713HMT
CoolerMaster SilentPro M2 1000W Silver
Cooler Master Hyper 212X Turbo
Razer Mamba TE Chroma
Razer Goliathus Extended
SAMSUNG Bluray Combo SH-B123L
Windows 10 Pro 64bit

gzhilTopic starter

  • Hardware Reviewer
  • SECOND LIEUTENANT
  • **
  • Offline Offline
  • Posts: 127
Re: MSI R7870 Twin Frozr 2GD5/OC. Serious Gaming Starts Here :)
« Reply #4 on: 12-October-12, 03:07:17 »

@neoroy

In some games GTX580 will be still stronger :)
Logged
Enermax Revolution 1050W watts PSU
MSI XPower
Intel Xeon
G Skill Perfect Storm 3x2GB DDR3 2133MHz
MSI N580GTX Lightning
OCZ Solid 3 60GB SSD 6GB/s
Seagate 500GB 3GB/s
Coolermaster CM 690 II Advance
A4Tech X7 G700 Keyboard
A4Tech X5-70MD
Creative 5.1 Speakers
Hanns-G HG281 28" LCD Monitor

Hippie Tech

  • CORPORAL
  • ****
  • Offline Offline
  • Posts: 12
    • HT's HWBOT page
Re: MSI R7870 Twin Frozr 2GD5/OC. Serious Gaming Starts Here :)
« Reply #5 on: 12-October-12, 20:02:03 »

Hi and good day all.

Here is my R7870 TFIII making due with a serious (and sometimes not so serious), AM3 cpu bottleneck.

AVP benchmark
HD 7870 @1250/1250 - 105 fps
HD 6870 @1000/1150 - 70 fps


3DMark11
HD 7870 @1250/1250 - P7078, graphics - 7332
HD 6870 @1000/1150 - P4705, graphics - 4516


HWbot Unigine Heaven 2.1 DX9
HD 7870 @1250/1250 - 3225
HD 6870 @1000/1150 - 2325






pEACe

Logged
Phenom II x6 1600T 3.7ghz 1.3v, Zalman CNPS 12x
Gigabyte GA990XA-UD3 r1.1 F12
MSI R7870 TFIII OC, Zalman VF3000N
GSkill Ripjaws 8gb 1333mhz
OCZ Agility III 60gb, Seagate 1tb
Antec HCG 750w, Antec 300

neoroy

  • FIRST LIEUTENANT
  • ***
  • Offline Offline
  • Posts: 360
Re: MSI R7870 Twin Frozr 2GD5/OC. Serious Gaming Starts Here :)
« Reply #6 on: 14-October-12, 12:34:39 »

@neoroy

In some games GTX580 will be still stronger :)

I see, GTX580 still quite strong for HD7870 then  :rolleyes_anim: thanks Gzhil.

@Happy Tech, nice result  :biggthumbsup: btw your memory only max 1250MHz? Can it push to 1450MHz?
Logged
Intel Xeon E5-2623 V3 @3.3GHz
MSI X99A SLI Krait Edition
GALAX GTX980Ti GOC LN2 @1500MHz stock volt
Gskill Ripjaws V 4x4G 2400MHz DDR4
Pioneer SSD APS-SL3N 240GB
Seagate HDD 1TB 7200rpm SATA3
Seagate HDD 500GB 7200rpm SATA3
DELL U2713HMT
CoolerMaster SilentPro M2 1000W Silver
Cooler Master Hyper 212X Turbo
Razer Mamba TE Chroma
Razer Goliathus Extended
SAMSUNG Bluray Combo SH-B123L
Windows 10 Pro 64bit

Hippie Tech

  • CORPORAL
  • ****
  • Offline Offline
  • Posts: 12
    • HT's HWBOT page
Re: MSI R7870 Twin Frozr 2GD5/OC. Serious Gaming Starts Here :)
« Reply #7 on: 14-October-12, 16:56:51 »

Hio and ty Neoroy. You can find me on HWbot, if you want to see more.  :hat tip:

I have not tried anything higher than 1250 mhz on the memory just yet. Soon after I ran those benchmarks, I took the cooling plate off and saw that half the ram and some of the vrms were making little to no contact with the thermal pads. MSI tech support gave me the go ahead to try and bend it into place, so maybe now is a good time to give it a shot. lol

HD 7870 vs GTX 580 stats
gpureview.com/show_cards.php?card1=677&card2=637
Logged
Phenom II x6 1600T 3.7ghz 1.3v, Zalman CNPS 12x
Gigabyte GA990XA-UD3 r1.1 F12
MSI R7870 TFIII OC, Zalman VF3000N
GSkill Ripjaws 8gb 1333mhz
OCZ Agility III 60gb, Seagate 1tb
Antec HCG 750w, Antec 300

neoroy

  • FIRST LIEUTENANT
  • ***
  • Offline Offline
  • Posts: 360
Re: MSI R7870 Twin Frozr 2GD5/OC. Serious Gaming Starts Here :)
« Reply #8 on: 05-November-12, 02:34:57 »

Hio and ty Neoroy. You can find me on HWbot, if you want to see more.  :hat tip:

I have not tried anything higher than 1250 mhz on the memory just yet. Soon after I ran those benchmarks, I took the cooling plate off and saw that half the ram and some of the vrms were making little to no contact with the thermal pads. MSI tech support gave me the go ahead to try and bend it into place, so maybe now is a good time to give it a shot. lol

HD 7870 vs GTX 580 stats
gpureview.com/show_cards.php?card1=677&card2=637
Wow you already in HWbot  :worship: congratulations Hippie Tech, btw your ID also Hippie Tech in HWbot?
Yup I saw this issue too when I use MSI GTX570 TFII OC... black plate seems didn't bend perfectly because I can still it's gap from side... but with MSI GTX 570 PE I think it's bended perfectly.
