Quick Short Test & Review of X58 PRO-E
« on: 02-August-09, 03:13:51 »

Here is an upgrade version to the entry level X58PRO motherboard that MSI has to offer before. Model name is “X58PRO-E” and this was introduced to solve the High IOH Temp that other users encountered before with the X58 Pro. The chipset & VRM heatsinks are now screwed on the board thus making a good contact for better & fast heat dissipation. Don’t get worried  also for the price because this would be still around 10k PHP and if paired with a good i7 920 processor (priced around 13-14k PHP) you will own a system which would be great for video editing, graphics processing & gaming as well (SLI or Crossfire can be done on this motherboard ^^ ). On the other hand, if you are an overclocker like me. It is very easy for the board to overclock the i7 920 to 4ghz at a minimal voltage increase and few bios tweaking.

So here is a shot of the box and its contents


•Four Sata Cables
•One IDE Cable
•Two Molex to SATA power Adapters
•1x Cross Fire Bridge
•Front Panel header labels
•Driver & Extras CD
•User manuals & Backplate

Features

•Support for Core i7 LGA1366 CPUs at 4.8-6.4GT/s QPI
•Intel X58 northbridge and ICH10R southbridge
•Six 1.5V DDR3 DIMM slots supporting up to 24GB of memory
•One Realtek RTL8111C Gigabit Ethernet controllers
•Three PCI-Express 2.0 x16 slots (x16/x16/x4)
•Two PCI-EXpress x1 slots
•Two PCI slots
•Seven SATA II ports - six from Intel ICH10R (supporting Intel Matrix RAID 0, 1, 10, 5 and JBOD), one from JMicron JMB363
•One IDE port supporting one device from JMicron JMB363
•One eSATA port from JMicron JMB363
•Ten USB 2.0 ports - six on rear I/O, four via pin-outs
•JMicron JMB381 IEEE1394a Firewire supporting two ports - one via pin-out, one on the rear I/O
•Realtek ALC888S 7.1 Channel High-Definition audio codec

Layout & I/O Ports

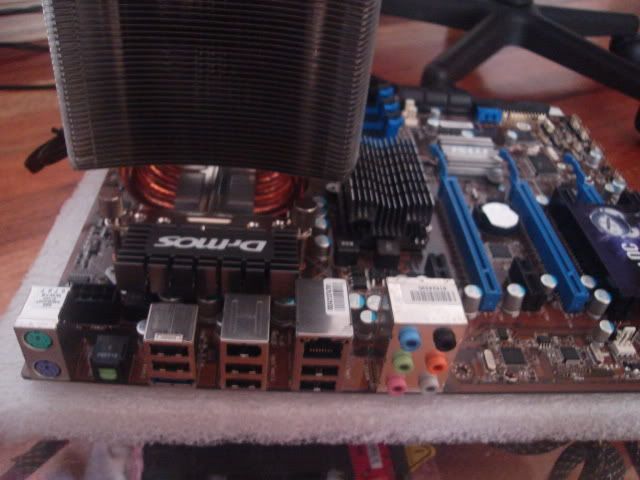

Black heatsink screw design. Three well placed PCIE (x16/x16/x4) slots which won’t give any users a problem installing three dual-slot video cards. You will also find below the Easy OC Switch sticker are the Easy Power/Reset/ Clear Cmos Buttons & beside them is the OC Switch.


On the rear you will find 6 USB Ports, Firewire port, E-SATA, SPDIF Out , PS2 for KB & Mouse, Gigabit LAN & lastly 7.1 audio ports.

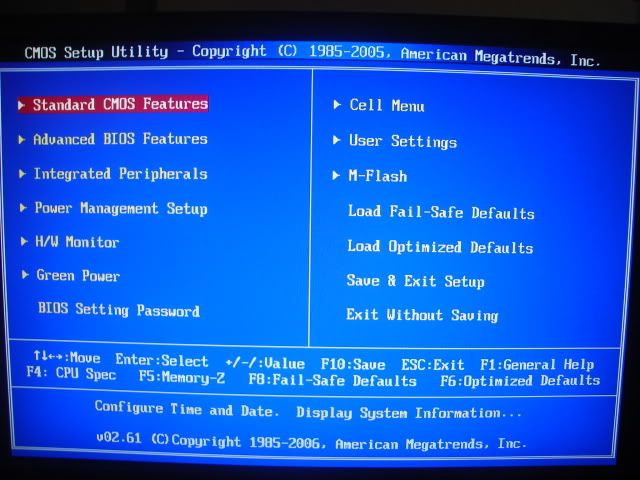

BIOS

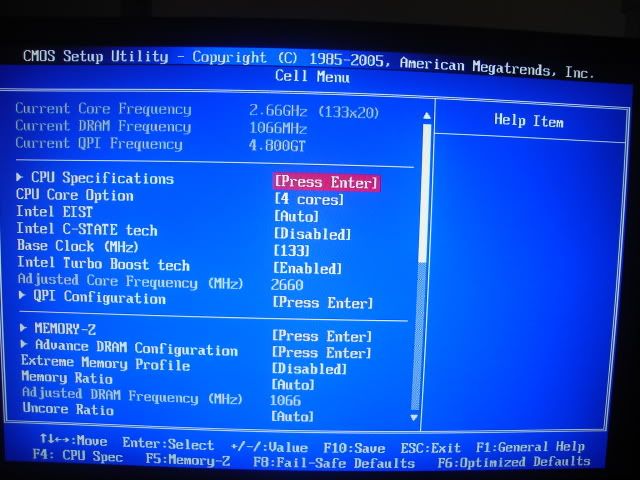

I only took pictures of the Cell Menu because this is the most important part of the bios especially in overclocking. This is where you will tweak your system.




CPU Specifications


Memory Specifications

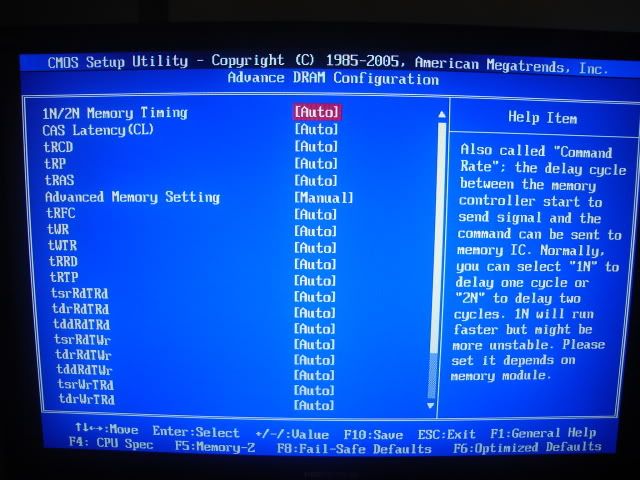

More Memory Options for Tweaking


Voltages


This is where you can save all your overclock or tweak settings

Test Setup

•Intel Core i7 920 C0
•G Skill Trident 2000 CAS9 1.65V
•MSI 4770
•FSP 800 watts PSU
•Seagate 500GB SATA
•Windows Vista Ultimate 64BIT SP2

Below are quick short tests on how good the board can handle high memory clock speeds even though in the manual it only says there that the highest OC for the memory speed is up to 1600mhz only for the motherboard.


G Skil lTridents 1600 6-7-6-18 TRFC60 1.58V


G Skill Tridents 1866 7-8-7-20 TRFC65 1.60V


G Skill Tridents 2000 8-9-8-20 TRFC80 1.65V


Tridents 2100 9-9-9-24 TRFC88 1.72V

I was able to get a good bclock 222 also with the i7 920 C0 I have. I guess if I used a D0 stepping instead , I can push the bclock higher.


Final Thoughts & Conclusion
I was very impressed on the capabilities of this entry level X58 motherboard can do. A few tweaks on the cell menu I was able to get high memory clocks and all were stable. You would also notice on one of my shots running the memory @ 2100mhz, my uncore ratio turned to a high of 4200mhz speed. All of these were done all on air.

Pros :
- Cheap Entry level X58 Board
- Easy to overclock
- Support SLI and Crossfire
- No issue on Bigger aftermarket CPU cooler
- 90 degrees placement of SATA & IDE ports

Cons :
- No SLI Bridge included in the Box
