Unboxing MSI X79A-GD45 Plus
« on: 02-April-13, 21:10:45 »

Glad to be back hehehe  ;D

The X79A-GD45 Plus is quite unique because of the new Black and Grey color theme that MSI applied on the board and also for its new chipset heatsink design. In terms of new features, the board’s audio software is improved. From the previous THX audio software it is now updated to Sound Blaster Cinema, giving the listener better audio experience.



The packaging is same as last year’s. The Military Class III logo in front indicates “5 Stars” meaning that the board is equipped with reliable and sturdy components such as Hi-C Capacitors, Solid Capacitors, Super Ferrite Choke and lastly DrMos II (Driver Mosfet).



Turning the board around, you will find more info about the board’s other features – Click Bios II, Instant OC, Super-Charger and OC Genie II.




Below are the bundles:
• Mainboard Manual and Quick Installation Guide
• Software & Application Manual
• Short Overclocking Guide
• Certificate of Quality and Stability (Military Class III Components)
• Driver & Utility Disc
• M-Connector
• 3x SATA 6GB/s Cable
• SLI Bridge
• I/O Back Plate




Check out the board. I’m glad that MSI released a motherboard with this kind of color scheme. The layout is clean and sleek looking.

Basic Specification of the Board:
•CPU: Supports 2nd Generation Intel® Core i7 processors in LGA2011 package.
•Chipset: X79
•Memory:  Supports eight unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1800*/2133*/2400*   (*OC) DRAM, 128GB Max
• 3 PCI Express gen3 x16 slots / 2 PCI Express gen2 x16 slots / 1 PCI Express 2.0 x1 slot
• Supports four SATAII ports (SATA3~6) by X79 / Supports two SATAIII ports (SATA1~2) by X79
• 3x USB 3.0 / 8x USB 2.0

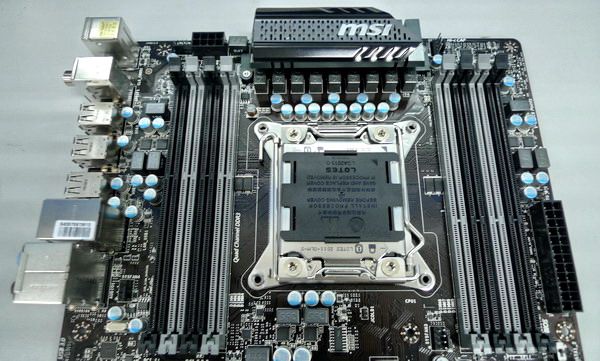

Closer look on the upper area of the board. 9 Power Phase for the CPU Socket and I think 4 for the DIMM slots.

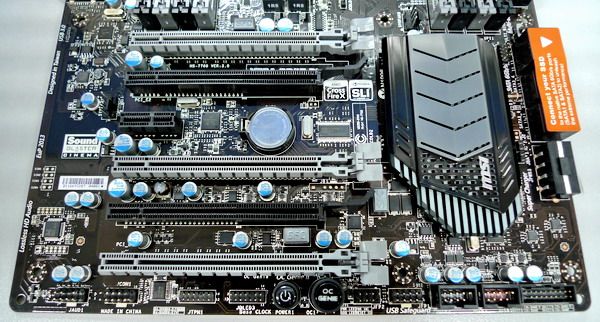

Your choice:  SLI, Crossfire or 3-Way SLI  (16,16,8x Speed) .  Below the Slots you will find the Easy Buttons – OC Genie and Power Button. Headers are also present like USB 2.0/ USB3.0 etc…




Starting on the left, we have the 4 pin Molex connector to provide additional power for a multi-graphic card setup. Then 4x SATA 3GB/s Connector and the last two are SATA 6GB/s Connector.
By the way, there is also a hard switch for Multi-Bios Selection in between of the SATA ports and the 24Pin Power Connector for the motherboard.




• 1x PS/2 Keyboard port
• 1x PS/2 Mouse port
• 1x Clear CMOS button
• 1x Coaxial SPDIF-out port
• 1x Optical SPDIF-out port
• 1x RJ45 LAN Jack
• 6x USB 2.0 ports
• 2x USB 3.0 ports
• 1x 6 in 1 audio jack


That’s it for the unboxing  :) Thanks…
Logged
Enermax Revolution 1050W watts PSU
MSI XPower
Intel Xeon
G Skill Perfect Storm 3x2GB DDR3 2133MHz
MSI N580GTX Lightning
OCZ Solid 3 60GB SSD 6GB/s
Seagate 500GB 3GB/s
Coolermaster CM 690 II Advance
A4Tech X7 G700 Keyboard
A4Tech X5-70MD
Creative 5.1 Speakers
Hanns-G HG281 28" LCD Monitor

neoroy

  • FIRST LIEUTENANT
  • ***
  • Offline Offline
  • Posts: 360
Re: Unboxing MSI X79A-GD45 Plus
« Reply #1 on: 08-April-13, 11:12:12 »

Nice pics Gzhil :) Hmm there are 9 powerphase for CPU right? Plus 2 powerphase for memory and 1 powerphase for CPU IO/VTT, am I right? or ... ?
No V-Check point.
